If you haven't done so already, open Map Tools.

Relocating a chart is one of the main purposes of Astro Locality Mapping - studying the possible affects of relocating to another place.

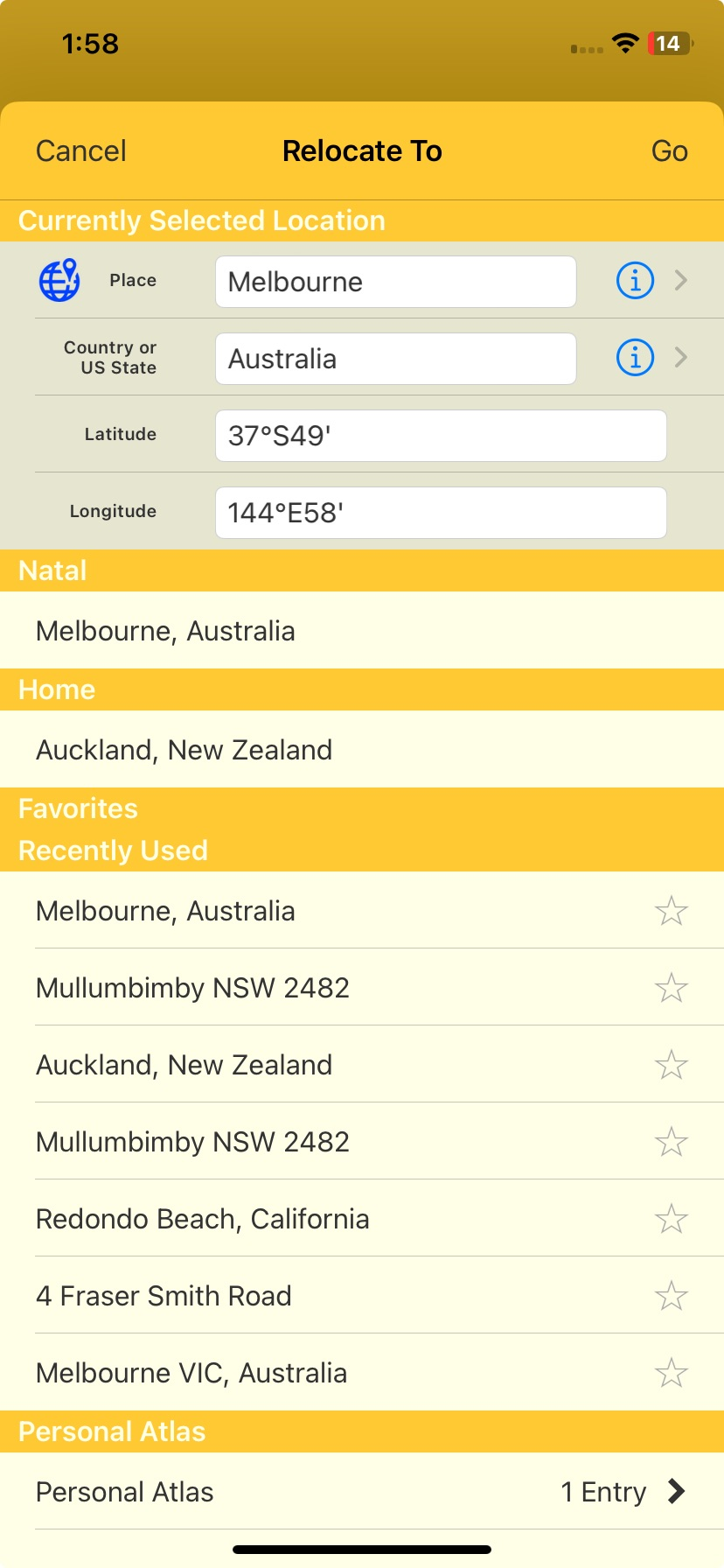

➢ Tapping on Relocate Chart displays the following screen:





Currently selected location

This is either the location of the selected chart, or the most recent location you have previously relocated to (if you have done that). If this is the place you want as your relocation target then you are set to go. Otherwise you need to change this to the place you want to see relocation information for.

>> To enter a new location to relocate to

Place:  type in the City or Town.

Alternatively tap on the Info look-up icon to the right of the "Place" field to choose a Place for the country/US state entered in the field below. Tap on the Place in this list you want.

Or if you are connected to the internet tap on the Globe Location Search icon to the left of the "Place" field to search for a place on the map. See Using The Globe for more info on doing this.

Country or US State:  type in the Country or US State

Alternatively tap on the Info look-up icon to the right of the "Country or US State" field and tap on the Country/State in this list you want.

Latitude:  once you have filled in a Place and Country/State the latitude of that place will be automatically filled in here. However you can type over it with another latitude value if you want.

Longitude:  once you have filled in a Place and Country/State the longitude of that place will be automatically filled in here. However you can type over it with another longitude value if you want.

Note: If you leave either the latitude or longitude fields blank they will revert to 0°.

a)To get them automatically filled in again you will need to select a different Country/State (this is just temporarily). When you do this you will get an error message saying Astro Gold cannot find the place you have entered in that Country or State.

b)Tap on the OK button then reselect the original (correct) Country/State for the place entered and the latitude and longitude will be refreshed with their original values. The values will be colored red for a failed look-up and colored green for a successful look-up by Astro Gold.

>> To display the new location on the map

Tap on the Go button on the the side right of the Toolbar.



Natal

This shows the location of the chart that was originally selected which is useful as a reference if you have subsequently entered one or more different locations to relocate to.

Home

This shows the location entered in the "Home & Atlas" section of Settings.

Favorites

This shows locations in the "Recently Used" section below that you marked as a favorite location. To unfavorite a location listed here, tap on the golden colored star to its right.

Recently Used

Shows locations recently entered in this Relocation screen. You can mark any as a Favorite by tapping on the star to right till it's a golden color. Tap on a golden color star to un-favorite it.

Personal Atlas

Shows locations that you have saved at any point in time in the Globe Location Search function. To see them tap on the Entries > button to the right.

a)To see see the details of a location tap on the Info icon to the right of it. This will display a dialog box containing all the details

b)To use an entry in the Personal Atlas as a location to relocate the chart to, tap on the location. It's details will be automatically filled in for the relocation Place and Country/State of the "Relocate To" screen.

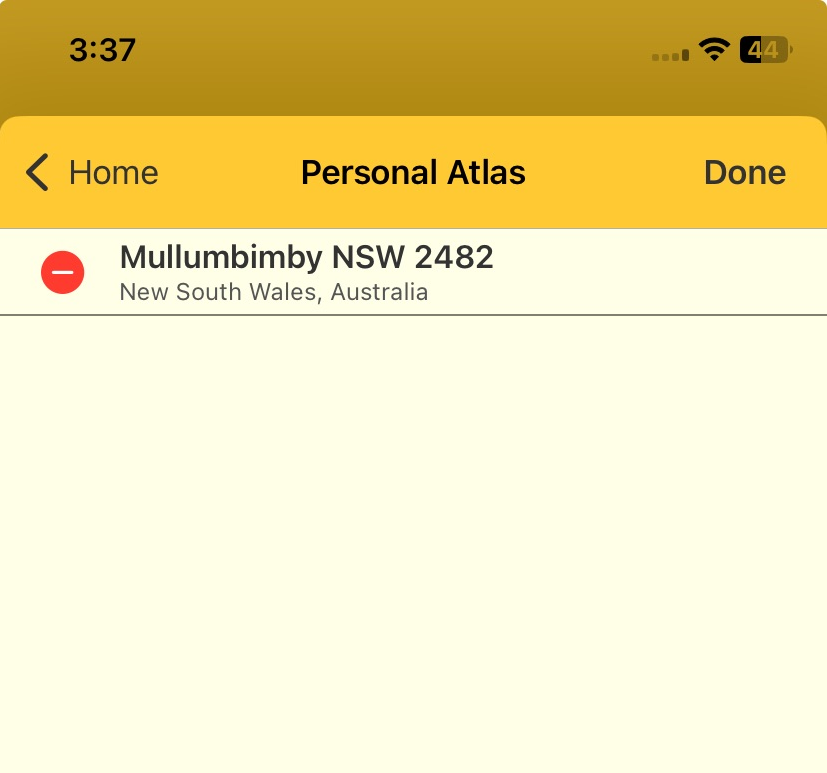

c)To delete a location from your Personal Atlas tap on the Edit button in the top left corner. The following screen will be displayed showing all your Personal Atlas entries. Each location has a red circle with a white minus sign in it to the left of the location.





d)To delete the location tap the red circle/minus sign. A red Delete button will appear to the right of the location. Tap it to delete the location from your Personal Atlas. Finally tap on the Done button in the top right of the screen to close it.

e)At any point in the Personal Atlas screen you can tap on the Home button in the top left of the screen to cancel editing your Personal Atlas entries and return to the "Relocate Chart" menu.




Next Map topic: Globe Location Search
